Ultra-Rugged 2D Handheld Barcode Scanner Pc Large Scale Logistic Huge Warehouse

Name: Ultra-Rugged 2D Handheld Barcode Scanner Pc Large Scale Logistic Huge Warehouse
Brand: Ultra-Rugged 2D Handheld Barcode Scanner Pc Large Scale Logistic Huge Warehouse
SKU: Ultra-Rugged 2D Handheld Barcode Scanner Pc Large Scale Logistic Huge Warehouse
Rating: 4.7 (128 reviews)

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                2d barcode scanner, handheld barcode scanner, barcode scanner pc


Scanner:	Powerful 2D Scanner Engine	Working Frequency:	433 MHz ISM Frequency
Transmission Distance:	500 Meters	Module:	2D Imager 1280*960

Scanner:	Powerful 2D Scanner Engine
Working Frequency:	433 MHz ISM Frequency
Transmission Distance:	500 Meters
Module:	2D Imager 1280*960

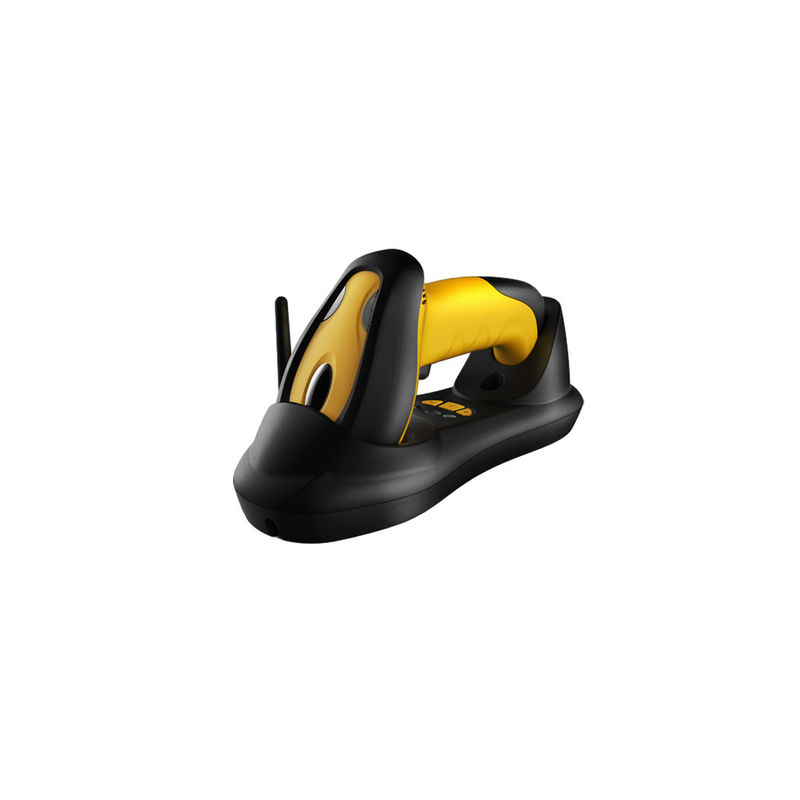

Ultra-Rugged 2D Handheld Barcode Scanner Pc Large Scale Logistic Huge Warehouse

Ultra-rugged industrial 2D handheld scanner, widely used for manufacturing, large-scale logistic and huge warehouse, etc

PB-4520 is configured with advanced imaging and micro-power wireless frequency hopping technology. It is good at scanning all kinds of 1D and 2D codes, especially those difficult to read, just like the attrited code, DPM, high reflecting, high density, small size, monitor-displayed etc. With a good ergonomic design and IP54 proof level, it’s competent to high intensity environments, like the manufacturing industry, large-scale logistic and huge warehouse and so on.

Main Specification

Powerful 2D Scanner engine;

Inventory mode, can store up to 60,000 commercial;

IP54 proof level;

433 MHz Working Frequency;

500 Meters Transmission Distance;

Features
1. Outstanding scanning sensitivity and decoding ability.
2. Can read codes on monitor, attrited code, DPM, high reflecting, high density, small size etc.
3. Configured with adaptive frequency hopping technology, it has got stable data transmitting with strong anti-interference, even in the harsh industrial conditions.
4. IP54 proof level, competent for harsh environment.
5. Good ergonomic design for long working hours.
6. Built-in data storage, can store up to 60,000 commercial codes.
7. 1 socket can support up to 100 scanners.
8. Easy operation: one press for pairing, 2 dual-color indicators show many working statuses, like power low, recharging, data transmitting, storage full etc.

Classical application
1. Automobile industry, Heavy Machinery, Electronics industry.
2. Large warehouses, sea port and cargo terminals.
3. Large logistics enterprises.
4. Other place require higher scanning performance or higher scanning intensity.

Why PB-4520 Wireless Scanner?

In the same environment, multi-scanner can be used at the same time.			Ultra-long distance wireless transmission
Can be set up one scanner to one receiver, or multi-scanner to one receiver.			In an open environment, the transmission distance is 500 meters; With partition wall, the transmission distance is is 50 meters.


Inventory Mode			Super decoding ability
When the scanner disconnect with the receiver, the data will be automatically stored in the memory and it will be uploaded automatically when it is near the computer.			Read All Kinds of Difficult Barcodes Quickly.

Performance Parameter
Transmission Distance					500 Meters
Working Frequency					433 MHz ISM frequency
Input Voltage					5V DC, ±0.25V
Power					1.1W(working); 0.25W(standby)
DC Current					270mA(working); 60mA(standby), 300~430mA (recharging)
Module					2D Imager 1280*960
Lighting Source					White LED
Aiming Line					Red LED
Code Contrast					≥25%
Code resolution					≥3mil
Angle Tolerance					Skew ±72°, Pitch ±72°, Roll 360°
Alert Mode					Indicator (dual color) and Buzzer (adjustable tone and volume)
Interfaces					USB, USB-COM, RS232
Trigger Mode					Manual trigger, Auto-detective
Cable Length					2 Meters
Connector end					RJ-45
Environment Luminance					0 ~ 100,000 Lux
Environment emperature					-18°C ~55°C (working); -40°C ~70°C (storage)
Environment Humidity					5%~95% (Non-condensing)
Shield Materials					Dual-color ABS/PC+TPU; single-color ABS+PC; transparent: PC;
Shock proof					Withstand multiple drops from 2.0m to concrete surface
Dust & Water proof					IP54
Certificate					CE, FCC and RoHS
Decoding Capabilit
1D Barcode Decode:					UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full ASCII), Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5,Codabar, Code 128, Code 93, Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post Code, GS1 Data Bar (formerly RSS) etc.
2D QR code Decode:					QR Code, MicroQR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode etc.
Readable range					1D, 2D, DMP, monitor-displayed
Mode setting					Set by scanning functional QR Code
