PB-M93 4G/5G Full Touch Android Mobile Computer
Product Overview

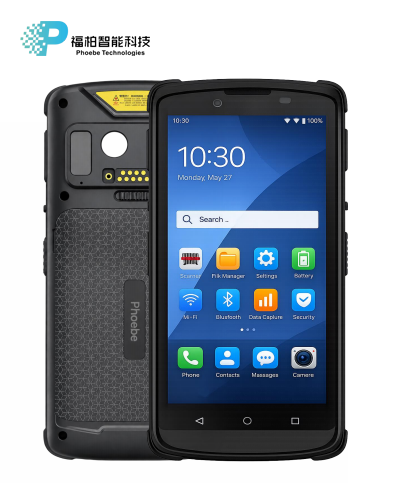

The Phoebe PB-M93 is a full-touch industrial mobile computer designed for efficient data collection and mobile business operations in retail, warehousing, logistics, manufacturing, healthcare, and other industries.
Available in both 4G LTE and 5G versions, the PB-M93 offers different hardware configurations to meet various business requirements.
The 4G version runs Android 14 and offers MTK or Qualcomm processor options, while the 5G version runs Android 15 with a Qualcomm Octa-Core processor.
Both versions feature a 6.0-inch IPS HD touchscreen, advanced scanning technology, NFC connectivity, Bluetooth 5.2, and a replaceable battery.
With multiple hardware options and accessories, the PB-M93 provides flexible solutions for enterprise mobile data collection.
Key Features
1. Android 14 / Android 15
Choose between the Android 14-based 4G version and the Android 15-based 5G version according to your business requirements.
2. 4G LTE and 5G Connectivity
The PB-M93 is available in 4G and 5G configurations for different wireless communication requirements.
3. 6.0-inch Full Touch Display
The 6.0-inch IPS HD touchscreen supports glove and wet-touch operation, making it suitable for a variety of working environments.
4. Barcode Data Collection
The PB-M93 features a 1.3MP BSI light-sensitive scanning engine for barcode data collection applications. Supported barcode types and scanner configurations should be confirmed before ordering.
5. NFC and Wireless Connectivity
Both versions support NFC and Bluetooth 5.2, along with multi-system satellite navigation.
6. Replaceable Battery
The 4G version features a replaceable 5000mAh battery. The 5G version offers replaceable 5000mAh and 6000mAh battery configurations.
7. Enterprise Accessory Options
A selection of optional charging accessories, spare batteries, protective cases, and carrying accessories is available for different business requirements.
Technical Specifications
1. Performance Parameters
| Specification |
4G Version |
5G Version |
| Model |
PB-M93 4G |
PB-M93 5G |
| Operating System |
Android 14 |
Android 15 |
| Processor |
MTK Octa-Core 2.0GHz / Qualcomm Octa-Core 2.8GHz |
Qualcomm Octa-Core 2.2GHz |
| RAM |
4GB / 6GB LPDDR4X |
4GB / 8GB LPDDR4X |
| ROM |
64GB / 128GB UFS |
64GB / 128GB UFS |
| Cellular Network |
4G LTE |
5G NR / 4G LTE |
2. Physical Specifications
| Specification |
4G Version |
5G Version |
| Dimensions |
170 × 78 × 15mm |
170 × 78 × 15mm |
| Weight |
270–280g (with battery) |
290g (with battery) |
| Display |
6.0-inch IPS HD |
6.0-inch IPS HD |
| Touchscreen |
In-cell, glove and wet-touch support |
In-cell, glove and wet-touch support |
| Battery |
5000mAh, replaceable |
5000mAh / 6000mAh, replaceable |
| Adapter |
5V/2.4A, 12W |
5V/2.4A, 12W |
| SIM Card |
Dual SIM, dual standby |
Dual SIM, dual standby |
| TF Card |
Up to 256GB |
Up to 256GB |
3. Wireless Connectivity
| Specification |
4G Version |
5G Version |
| Mobile Network |
GSM / UMTS / LTE |
GSM / UMTS / LTE / 5G NR |
| Wi-Fi |
802.11 a/b/g/n/ac (MTK); Wi-Fi 6-ready (Qualcomm) |
Wi-Fi 6-ready, 802.11 a/b/g/n/ac/ax |
| Bluetooth |
BLE 5.2 |
BLE 5.2 |
| NFC |
NFC supported, NFC IC on top |
NFC 13.56MHz |
| Navigation |
GPS, GLONASS, Galileo, BeiDou, Assisted GPS |
GPS, GLONASS, Galileo, BeiDou, Assisted GPS |
| High-Precision BeiDou |
Optional |
Optional |
Note: Supported cellular frequency bands vary according to hardware configuration and destination market.
4. Data Collection and Camera
| Specification |
4G Version |
5G Version |
| Scanning Engine |
1.3MP BSI light-sensitive scanning engine |
1.3MP BSI light-sensitive scanning engine |
| Rear Camera |
13MP autofocus with flash |
13MP autofocus with flash |
| Front Camera |
Optional 5MP |
Optional 8MP |
| Thermal Imaging |
Optional Qualcomm-based configuration |
Optional configuration |
Note: Scanner specifications, barcode compatibility, and optional imaging functions must be confirmed according to the selected configuration.
5. Environmental Specifications
| Specification |
4G Version |
5G Version |
| Protection Rating |
To be confirmed |
IP65 |
| Operating Temperature |
To be confirmed |
-25°C to +55°C |
| Storage Temperature |
To be confirmed |
-30°C to +70°C |
| Humidity |
To be confirmed |
5%–95%, non-condensing |
| ESD |
To be confirmed |
8kV / 15kV |
6. Optional Accessories
The PB-M93 offers a variety of optional accessories for enterprise applications.
Accessory availability and compatibility may vary depending on the selected configuration.
Application Areas
Retail and Supermarkets
Supports retail inventory management, stock checking, and mobile data collection.
Warehousing and Logistics
Suitable for inventory tracking, goods receiving, stocktaking, and shipment-related data collection.
Manufacturing
Supports production data collection, materials tracking, and manufacturing inventory management.
Healthcare and Pharmacy
Suitable for healthcare inventory management and related mobile data collection applications.
Field Services
Enables mobile data access and collection for personnel working outside a fixed office location.
Configuration and Ordering Information
The PB-M93 is available in 4G LTE and 5G versions with different operating systems, processors, memory capacities, and battery configurations.
Please specify your preferred network version, hardware configuration, scanning requirements, and quantity when sending an inquiry.
Please specify your preferred network version, hardware configuration, scanning requirements, and quantity when sending an inquiry.
Manufacturer / Supplier: Guangzhou Phoebe Technology Co., Ltd.
Website: https://www.hand-heldpda.com/
Specifications, optional features, and accessories may vary by configuration. Please contact our sales team to confirm the exact product specifications before placing an order.
